Quickie Iris (Intelligent Rotation In Space)

Quickie Iris (Intelligent Rotation In Space)

Rotation-In-Space

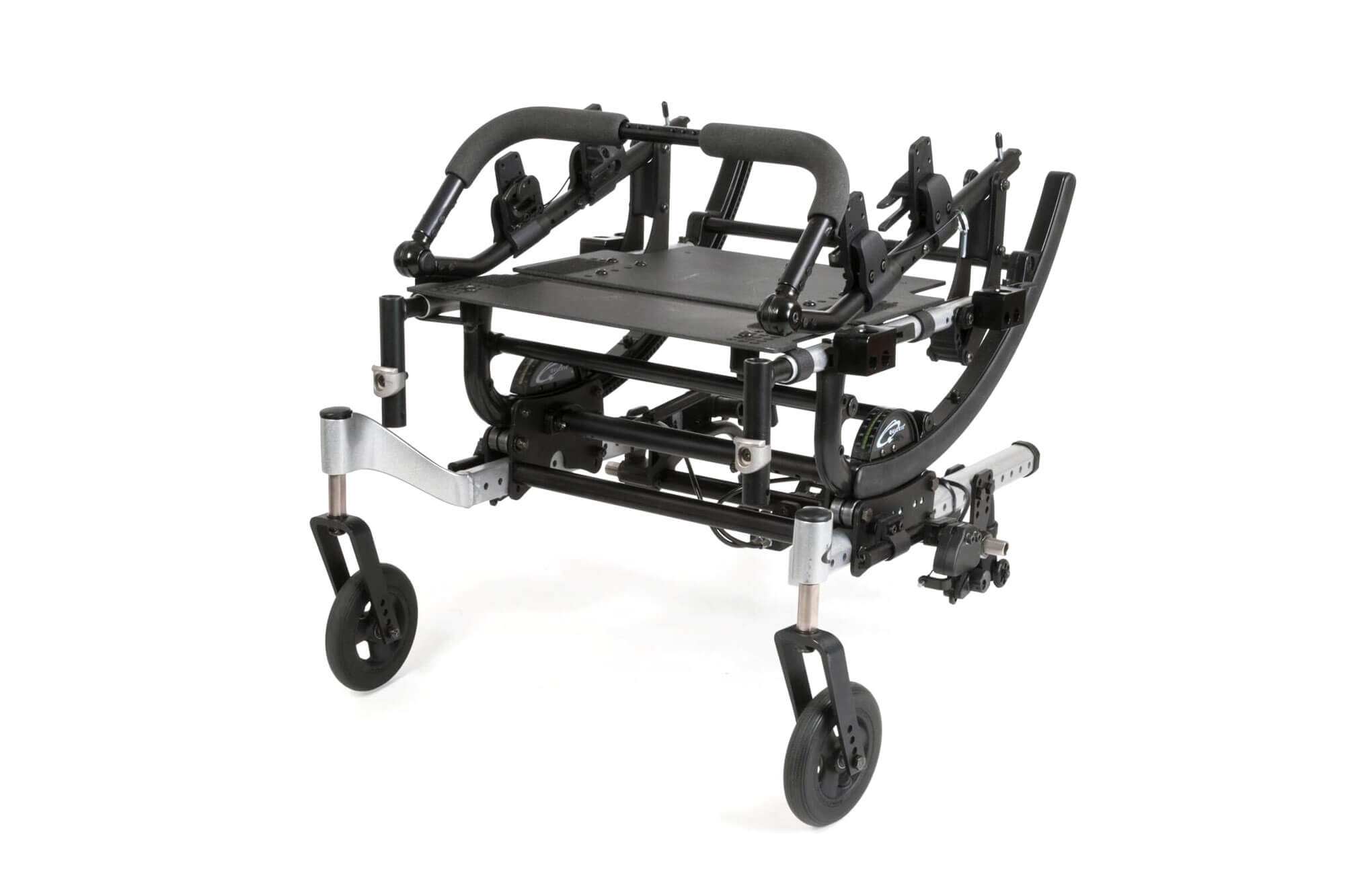

Instead of tilting the seat frame from an outside pivot-point the Quickie® IRIS™ actually rotates the seat frame around the users centre-of-gravity. This rotational system provides the shortest possible wheelbase without compromising stability. It also insures a smooth and controlled rotation.

The 60° & 40° Tilt Advantage

The Quickie® IRIS™ features three tilt ranges: -5° to 50°, 0° to 55°, and 5° to 60° on the standard 55° seat frame, and -5° to 35°, 0° to 40°, and 5° to 45° on the 40° seat frame. As the seat frame rotates past 45°, a significant amount of pressure transfers from the seat to the back. By providing up to 60° of tilt, the IRIS insures that the majority of pressure is removed from the ischial tuberosities. For individuals who only need positioning relief, the 40° tilt frame is ideal.

Low Seat-To-Floor Height

The Quickie Iris now features a 12 1/2″ front seat-to-floor height. Using a drop seat, this distance can be lowered to an even lower 10 ½” seat-to-floor height. Low seat-to-floor height is critical for users who use foot propulsion.

Cable Free

Cables always getting in the way? Not a problem with the Quickie IRIS foot release tilt actuator. It’s easy to operate, clean as a whistle and tangle free. It’s also available at no additional charge

Seat Width: 14 – 22″ (35.5-56 cm)
Seat Depth: 14 – 22″ (35.5-56 cm)
Front seat height: 12.5 – 19″ (32-50 cm)
Rear seat height: 12.5 – 19″ (32-50 cm)
Back height: 15 – 21″ (38 – 53 cm) or 18 – 24″ (46 – 61 cm)
Total Width: SW + 9.5″ (24 cm)
Seat Angle: -5º-60º
Backrest Angle: 80º-120º
Frame Angle: 60º-70º-80º
Inset:
Camber:
Max. User Weight: 113 kg/ 158 kg (XL version)
Product Weight: from 17 kg
Upholstery Colours: black
Frame Colours: 17 colours
