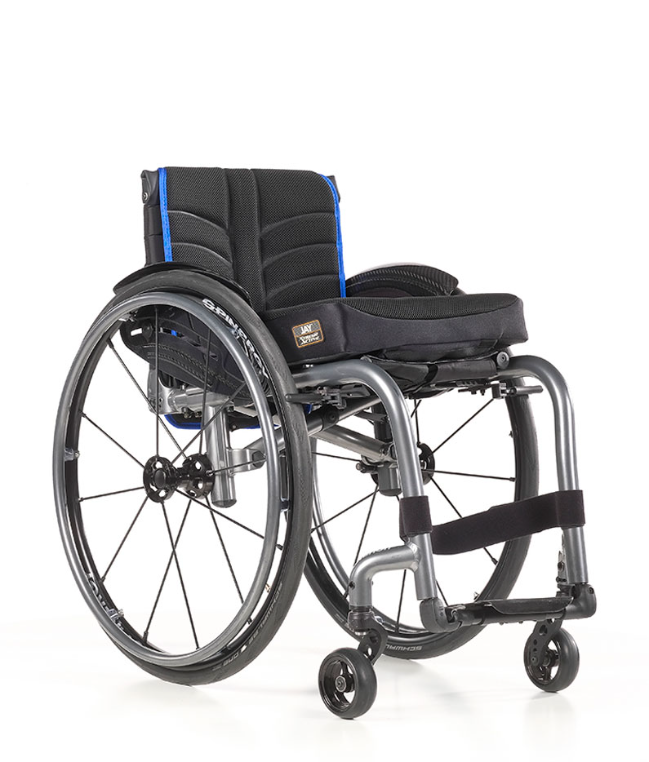

Easy folding and lightweight lifting
Weighing just under 6.0kg without its quick release wheels, the ultra-light Xenon has revolutionised wheelchair lifting and transporting. Yet because of its innovative crossbrace, the Xenon performs like a rigid chair.
Dynamic Folding System
Supports easy one hand opening after pressing one lever.
Quickie® Locking System
The innovative and patented Quickie® Locking System makes Xenon easy to handle, provides the smallest possible folding package and can also be used by people without finger function.
Lightweight back angle adjustment
Xenon offers stylish designer backrest solutions integrated into the flow of the frame. 90º fixed and angle adjustable backrests that are easy to adjust from -15º degrees to +18º in 3º increments measured to the frame.
| Seat Width: | 12.5 – 18″ (32 – 46 cm) -in 2 cm increments |
| Seat Depth: | 13.5 – 18″ (34 – 50 cm) -in 2 cm increments |
| Front seat height: | 17 -22″ (43 – 57 cm) |
| Rear seat height: | 15 – 19.5″ (34 – 50 cm) |
| Back height: | 10 – 19″ (25 – 47,5 cm (in 2,5 cm increments)) |
| Total Width: | SW + 7.8″ (20 cm) |
| Seat Angle: | 0° – 12° |
| Backrest Angle: | -15° to +18° (optional) |
| Frame Angle: | 92° / 100° |
| Inset: | 0 / 1 cm each side( optional) |
| Camber: | 0° / 2° / 4° |
| Max. User Weight: | 125 kg |
| Product Weight: | from 8.4 kg |
| Upholstery Colours: | 5 colours |
| Frame Colours: | 29 colours |
